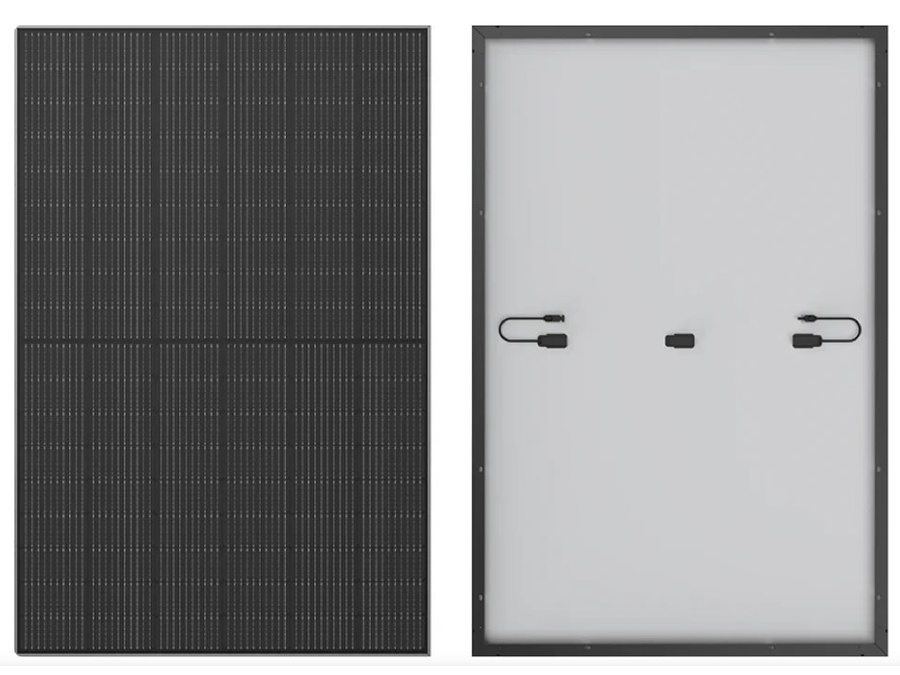

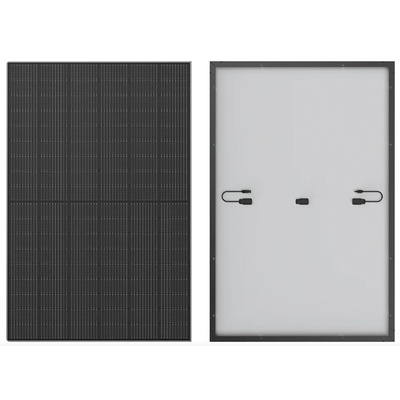

ECOFLOW Rigid Solar Panel Combo 400W 1x2
- Gewicht: 21.80kg
- Technologie: Monokristallin
- Anschluss: MC4
- Schutzart: IP68
- Schneelast max.: 5400Pa, 551kg/m²
- Sogfestigkeit max.: 2400Pa, 245kg/m²
- Fläche inkl. Rahmen: 1.95m²
- Leistung (Pmax): 400Wp (STC)
- Nennspannung (Vmp): 31.00V (STC)
- Ausgangsstrom max. (Imp): 12.90A (STC)
Technische Daten
Anschluss
MC4
Ausbeute
204.84Wp/m² (STC)
Ausgangsstrom max. (Imp)
12.90A (STC)
Fläche inkl. Rahmen
1.95m²
Fläche inkl. Rahmen Set
3.91m² (ohne Montageabstände)
Gesamtleistung Set
800Wp (STC)
Gewicht
21.80kg
Kurzschlussstrom (Isc)
13.79A (STC)
Leerlaufspannung (Voc)
37.10V (STC)
Leistung (Pmax)
400Wp (STC)
Modulanzahl
2
Nennspannung (Vmp)
31.00V (STC)
Schneelast max.
5400Pa, 551kg/m²
Schutzart
IP68
Sogfestigkeit max.
2400Pa, 245kg/m²
Technologie
Monokristallin
Temperatur-Koeffizient
STC, +0.060%/°C (α Isc), -0.350%/°C (β Voc), -0.380%/°C (γ Pmax)
Wirkungsgrad
23.0%
